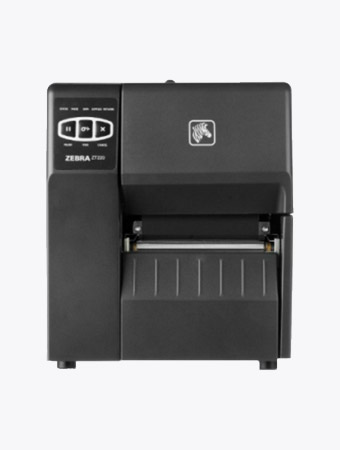

Zebra ZT200

Compact and affordable - ZT200 Industrial Printer Series

The extremely compact Zebra ZT200 label and barcode printer series comes in a space-saving design, enables easy deployment, intuitive operation and easy maintenance.

Included with each printer

UK and EU power cord
USB 2.0 & Serial port, ZPL and EPL (only at 203 dpi)
firmware
128MB RAM (4MB User Available)
128MB Flash (32MB User Available)
Fixed fluoroscopic and adjustable reflective sensor

The right choice for most labeling applications

Enjoy reliable printing and get the ZT200 series for numerous applications.

The ZT200 desktop printer series consists of two models - the ZT220 and ZT230 with metal or polymer housing. For more information about differences and more specifications, please see the data sheet.

The ZT200 series is designed for

Asset-Management
Cross-Docking
Inventory management
Tracking of lab samples
Receiving / Shipping
Reverse logistics
Tracking of unfinished products
Compliance labeling
Information labels
Labeling of patient records
Contract labeling
Drug labeling
Quality control

Technical Specifications of the ZT200 Industrial Printer Series

PRINT TECHNOLOGY

Direct-thermal or thermal transfer
(optional)

RESOLUTION

203 dpi/8 dots per mm Parallel, 10/100 Ethernet, 802.11a/b/g/n wireless
300 dpi/12 dots per mm (optional)

PRINT WIDTH

4.09”/104 mm

PRINT SPEED

6"/ 152 mm per second

BARCODE SYMBOLOGIES

Linear barcodes:
Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

2-Dimensional:
Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)

DIMENSIONS

ZT220 closed
• Width: 239 mm
• Height: 280 mm
• Depth: 432 mm

ZT230 closed
• Width: 242 mm
• Height: 277 mm
• Depth: 432 mm

WEIGHT

ZT220: 7.8 kg
ZT230: 9.1 kg

CONSTRUCTION

ZT220: Metal frame with plastic media cover
ZT230: Metal frame with metal media cover

For further technical information please see the datasheet for download.

Errors and changes excepted

Related Downloads

Spec Sheet ZT200 Series Printer

Zebra ZT200 Series industrial printer manufacturer information

Size

2.17 MB

Download

Download File

Info and How-To Videos

Info video about ZT200 industry printer series

Minimum space requirement, tool-free maintenance and minimum training effort for introduction.

How-To: Print Server Installation

Installation of a print server for Zebra ZT200 industry printer series.

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load Video

Always unlock YouTube

Item Numbers of the ZT200 Industry Printer Series

ZT220 Label Printer (Model variations)

ZT22042-D0E000FZ | ZT220 - 8 dot/mm (203 dpi), Direct Thermal
ZT22042-D0E200FZ | ZT220 - 8 dot/mm (203 dpi), Direct Thermal, 10/100
ZT22042-T0E000FZ | ZT220 - 8 dot/mm (203 dpi), Thermal Transfer
ZT22042-T0E200FZ | ZT220 - 8 dot/mm (203 dpi), Thermal Transfer, 10/100
ZT22043-D0E000FZ | ZT220 - 12 dot/mm (300 dpi), Direct Thermal
ZT22043-D0E200FZ | ZT220 - 12 dot/mm (300 dpi), Direct Thermal, 10/100
ZT22043-T0E000FZ | ZT220 - 12 dot/mm (300 dpi), Thermal Transfer
ZT22043-T0E200FZ | ZT220 - 12 dot/mm (300 dpi), Thermal Transfer, 10/100

ZT230 Label Printer (Model variations)

ZT23042-D0E000FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal
ZT23042-D0E100FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, Parallel
ZT23042-D0E200FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, 10/100
ZT23042-D0EC00FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, 802.11 a/b/g/n1
ZT23042-D1E000FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, Peel
ZT23042-D1E200FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, Peel, 10/100
ZT23042-D2E000FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, Cutter
ZT23042-D2E200FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, Cutter, 10/100
ZT23042-D3E000FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, Peel, Liner Take Up
ZT23042-D3E200FZ | ZT230 - 8 dot/mm (203 dpi), Direct Thermal, Peel, Liner Take Up, 10/100
ZT23042-T0E000FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer
ZT23042-T0E100FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Parallel
ZT23042-T0E200FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, 10/100
ZT23042-T0EC00FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, 802.11 a/b/g/n1
ZT23042-T1E000FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Peel
ZT23042-T1E200FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Peel, 10/100
ZT23042-T1EC00FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Peel, 802.11 a/b/g/n1
ZT23042-T2E000FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Cutter
ZT23042-T2E200FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Cutter, 10/100
ZT23042-T2EC00FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Cutter, 802.11 a/b/g/n1
ZT23042-T3E000FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Peel, Liner Take Up
ZT23042-T3E200FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Peel, Liner Take Up, 10/100
ZT23042-T3EC00FZ | ZT230 - 8 dot/mm (203 dpi), Thermal Transfer, Peel, Liner Take Up, 802.11 a/b/g/n1
ZT23043-D0E000FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal
ZT23043-D0E200FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal, 10/100
ZT23043-D1E000FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal, Peel
ZT23043-D1E200FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal, Peel, 10/100
ZT23043-D2E000FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal, Cutter
ZT23043-D2E200FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal, Cutter, 10/100
ZT23043-D3E000FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal, Peel, Liner Take Up
ZT23043-D3E200FZ | ZT230 - 12 dot/mm (300 dpi), Direct Thermal, Peel, Liner Take Up, 10/100
ZT23043-T0E000FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer
ZT23043-T0E200FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, 10/100
ZT23043-T0EC00FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, 802.11 a/b/g/n1
ZT23043-T1E000FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Peel
ZT23043-T1E200FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Peel, 10/100
ZT23043-T1EC00FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Peel, 802.11 a/b/g/n1
ZT23043-T2E000FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Cutter
ZT23043-T2E200FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Cutter, 10/100
ZT23043-T2EC00FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Cutter, 802.11 a/b/g/n1
ZT23043-T3E000FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Peel, Liner Take Up
ZT23043-T3E200FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Peel, Liner Take Up, 10/100
ZT23043-T3EC00FZ | ZT230 - 12 dot/mm (300 dpi), Thermal Transfer, Peel, Liner Take Up, 802.11 a/b/g/n1

ZT200 Series Kits

Media Handling

P1037974-007 | Kit Cutter Upgrade ZT200 Series (includes catch tray)
P1037974-008 | Kit Peel Upgrade ZT200 Series

Print Heads

P1037974-010 | ZT200 Series Printhead 203 dpi
P1037974-011 | ZT200 Series Printhead 300 dpi
P1037974-005 | Kit Convert 203 to 300dpi ZT200 Series
P1037974-006 | Kit Convert 300 to 203dpi ZT200 Series

Comms

P1037974-001 | ZT200 Series Internal ZebraNet PrintServer 10/100
P1037974-002 | ZT200 Series Parallel Port
P1058930-093C | ZT200 Series Internal ZebraNet PrintServer Wireless 802.11a/b/g/n radio1

Other

P1037974-004 | Kit Real Time Clock ZT200
P1037974-028 | Kit Platen Roller ZT200
P1037974-045 | Kit Packaging ZT230 (Not for use with Liner Rewind configurations)
P1037990-018 | Kit Packaging ZT220
ZKDU-001-00 | Zebra Keyboard Display Unit (ZKDU)
48766-001 | ZBI 2 Programming Language License (1 Printer)
47362 | Print Head Cleaning Foam Tip Swabs, pack of 6

ZT200 Series Zebra OneCare

Depot

Z1AE-ZT2X-3C0 | ZT220, ZT230

Zebra OneCare, Essential, 5 Day Turnaround Time EMEA, 3 Years, Comprehensive

Z1AE-ZT2X-300 | ZT220, ZT230

Zebra OneCare, Essential, 5 Day Turnaround Time EMEA, 3 Years, Non Comprehensive

On-Site

Z1A1-ZT2X-3C0 | ZT220, ZT230

Zebra OneCare, Select, Next Business Day Onsite (select counties only), 3 Years, Comprehensive

Z1A1-ZT2X-300 | ZT220, ZT230

Zebra OneCare, Select, Next Business Day Onsite (select counties only), 3 Years, Non Comprehensive

ZT200 Series Supplies

Ribbon

02300BK11045 | 2300 Economy Wax, 110mm x 450M
03200BK11045 | 3200 Premium Wax/Resin, 110mm x 450M
02300BK11030 | 2300 Economy Wax (300 meters for ZT220), 110mm x 300M

Label

76180 | Z-Perform 1000T - Economy paper Label, 102 x 152mm
76059 | Z-Select 2000T - Premium paper Label, 102 x 64mm
76060 | Z-Select 2000T - Premium paper Label, 102 x 152mm

Other

15055 | Empty Paper Cores for Ribbon Take Up, 110m x 25.4mm

More industrial printers from
Zebra Technologies

Are you looking for more industrial printers from this manufacturer?
Find more models on the manufacturer website or ask us. Our sales team will be happy to advise you.
